DGI Tesira Restart Module

This module will send the restart command a Tesira Device (Server or Forte) when the Restart Pulse goes high. Communication happens on port 23 (Telnet) make sure that it is enabled.

Enter the tesira IP Address or Hostname, Username (if secured) and Password (if secured)

Example

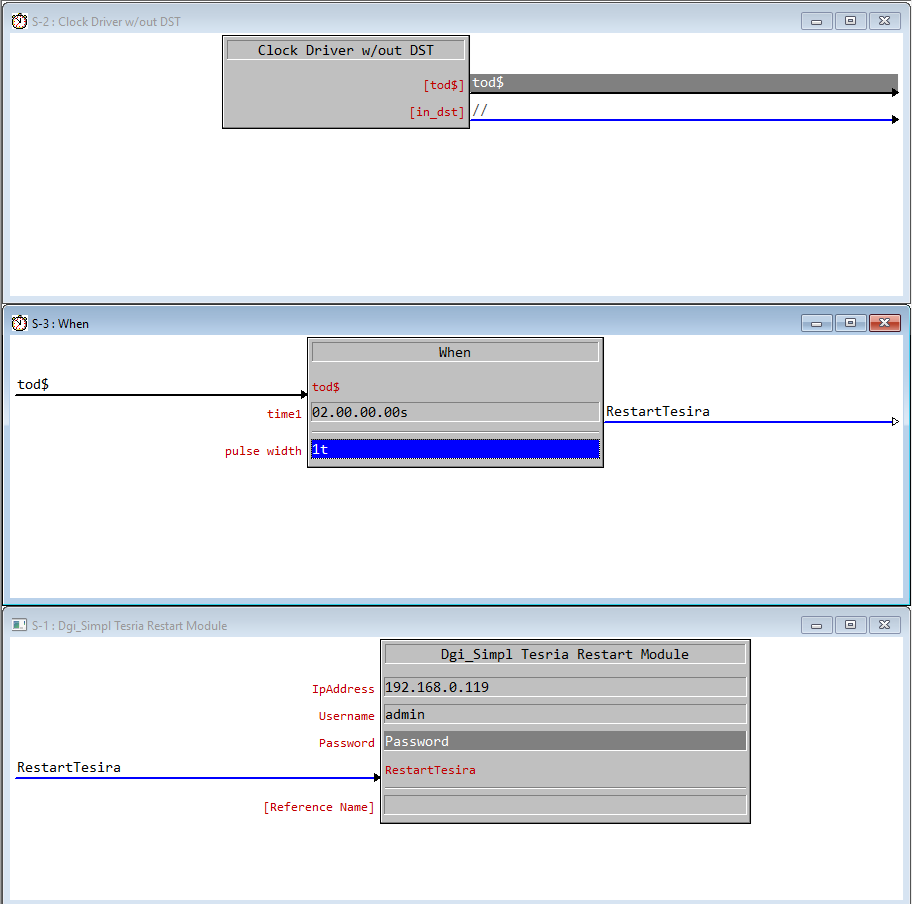

In the example below the module was connected to a ~When~ symbol that will send the restart command at 2:00 am Example

An Entry will be entered in the Log to record the event

 20. Notice: splusmanagerapp.exe [App 2] # 2025-10-07 08:46:15  # Module S-1 : Dgi_Simpl_Tesria_Restart_Module at line 79: USER SPECIFIED: Tesira at 192.168.0.119 has been asked to reboot
