Dgi_Configuration Parameter Module

For every Configuration Parameter Needed add an instance of Dgi_Configuration Parameter Module

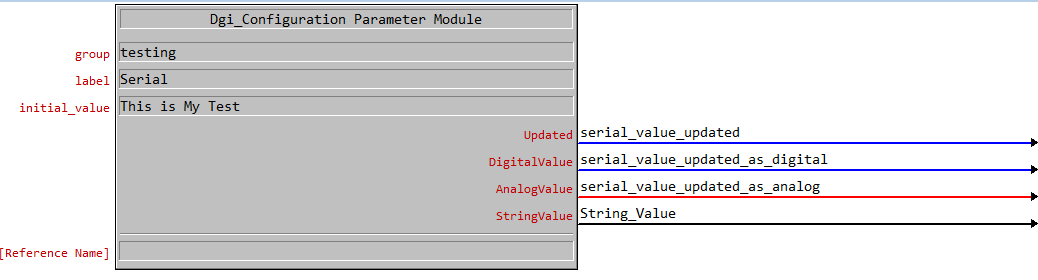

Configuration Parameter

Parameters

Group: A grouping name that will display all parameters belonging to the same group together in the web server

Name: Parameter name

Initial_Value: Parameter`s initial value. Note that this value will be overwritten if a prviously stored configuration files exists.

Outputs

Updated: Pulses when the parameter has changed. Normally when a new parameters file is uploaded into the server. Note that if a parameter doesn`t change its value, the signal will not pulse

DigitalValue: This will be computed as follows:

  • If the value is 0, this join will go down
  • If the vaule is an empty string, this join will go down
  • If the value is any other number different than 0, or any non empty string, this join will go up.

AnalogValue: This will be computed as follows:

  • If there is any number in the string, the first valid numbers of the string will be converted to an analog value from 0 to 65535. Negative numbers are converted to positive. So test1234test4321 will be converted to 1234.

SerialValue: Serial equivalent of the String value.
